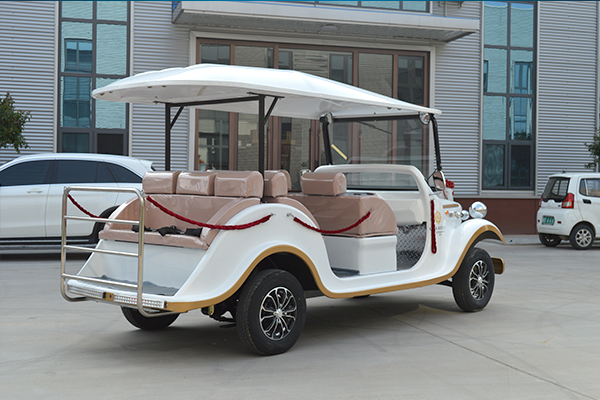

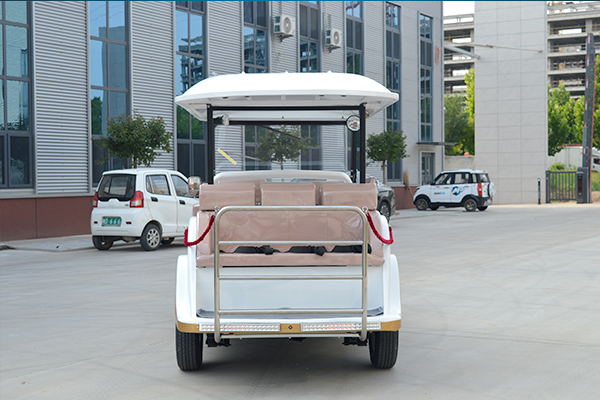

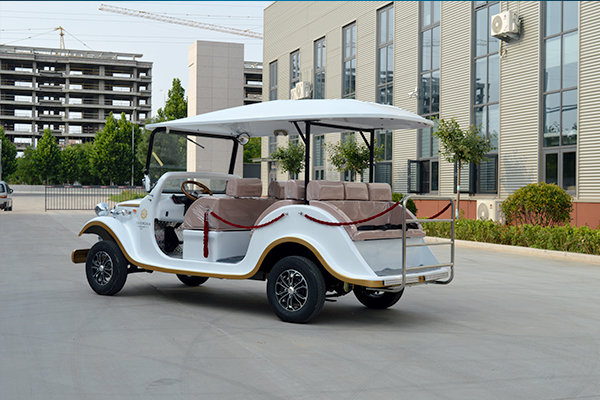

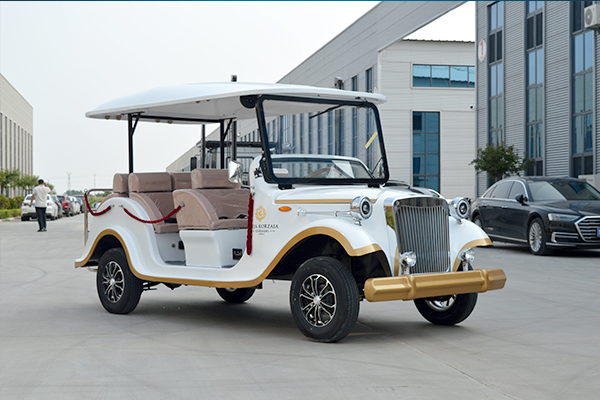

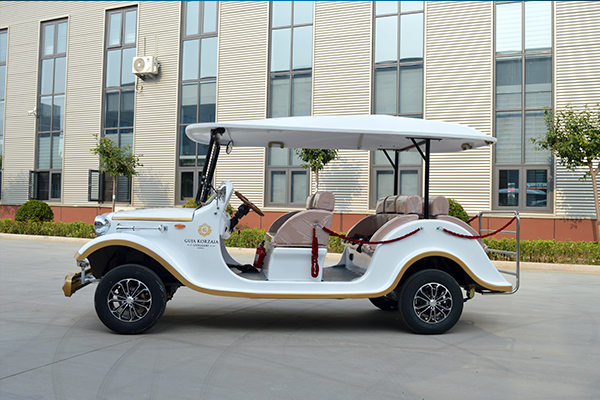

Classic car-three rows of 4 rows
Classic 4-Row Vintage Car Specification Sheet
1. Electrical System
Item | Parameter |
Electronic Control | 72V Yingboer Controller |
Battery | 6 pieces of 12V 100AH colloidal maintenance-free dry batteries, total 72V |
Motor | 4KW AC motor (power upgrade optional) |
Charger | Intelligent on-board charger |
Charging Time | 8–10 hours (at 80% discharge rate) |
2. Technical Parameters
Item | Parameter | Item | Parameter |
Charging Input Voltage | 220V | Braking Distance | ≤5m |
Overall Dimension (L×W×H, mm) | 5100×1650×2000 | Rated Passenger Capacity | 8–11 persons |
Curb Weight | 840kg | Maximum Speed | 40km/h |
Full Load Mass | 1500kg | Maximum Climbing Gradient | 20% |
Front / Rear Track Width | 1220mm / 1200mm | Minimum Turning Radius | 5.5m |
Wheelbase | 3500mm | Ground Clearance | 180mm |
Cruising Range | 80–100 km | — | — |
3. Body System
Item | Configuration Details |
Seats | 4 rows of seats, leather upholstery + high-resilience PU foam, grey color |
Car Body | Steel frame + metal body + ABS engineering plastic molded parts |
Instrument Panel | LCD display, showing voltage, current, speed, mileage, light status, forward/reverse gear signals, etc. |
Rearview Mirror | Manual exterior rearview mirror |

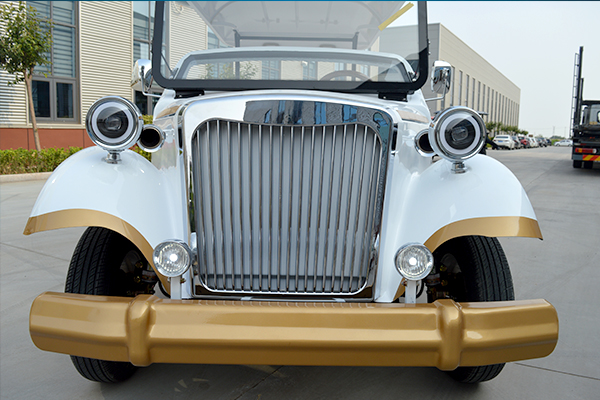

Lights & Signals | LED combined headlights, turn signals, combined rear taillights, brake lights, electric horn |
Audio System | On-board MP3 player, dual speakers |
Switches | Ignition switch, combined switch for lights & windshield wipers, forward/reverse gear switch |
Frame | All-steel structural frame |
Steering Wheel | Polyurethane foam steering wheel |
4. Chassis System
Item | Configuration Details |
Power Transmission | Continuously Variable Transmission (CVT) |
Steering System | Rack-and-pinion steering (power steering optional) |
Front Axle & Suspension | MacPherson independent suspension |
Rear Axle & Suspension | Solid rear axle (ratio 12.49) + high-strength leaf springs + cylindrical hydraulic shock absorbers |
Braking System | Hydraulic drum brakes with brake booster, dual-circuit hydraulic braking, parking brake device |
Wheels & Tires | 155/70R12 aluminum alloy wheels, vacuum radial tires |
