Details & Specifications

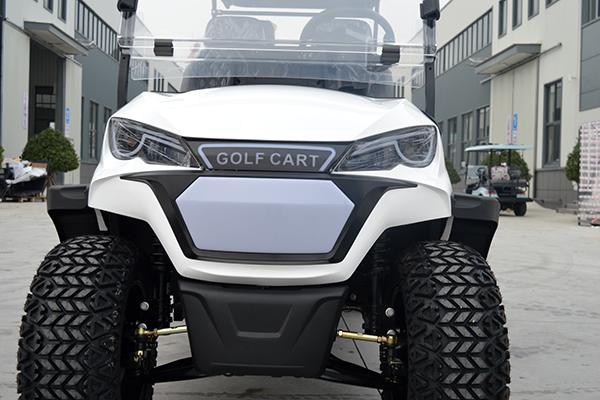

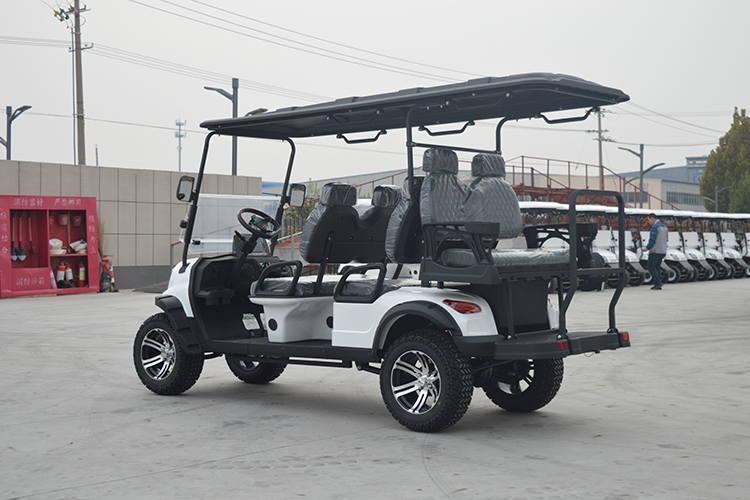

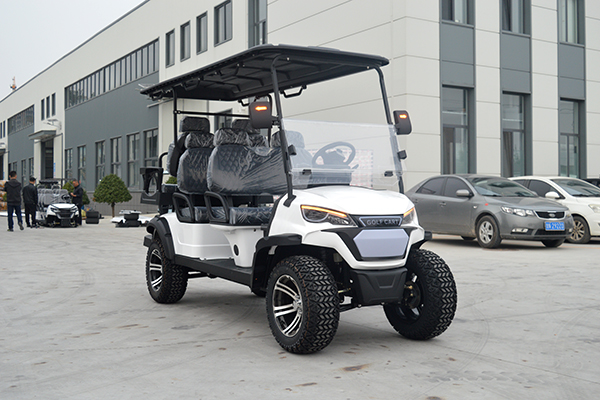

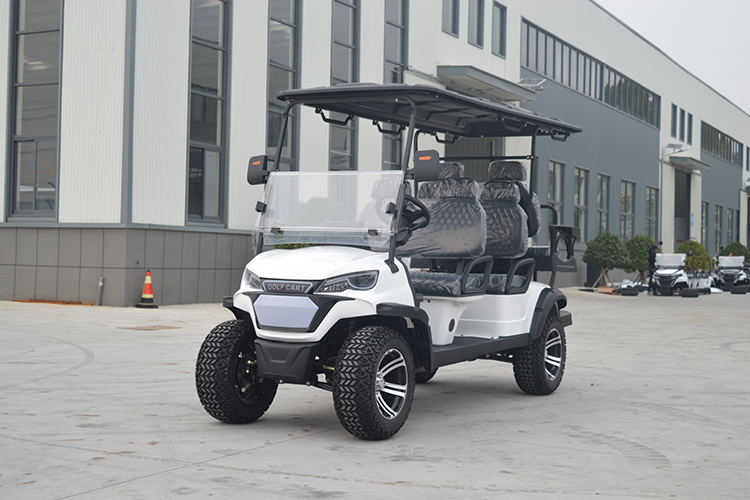

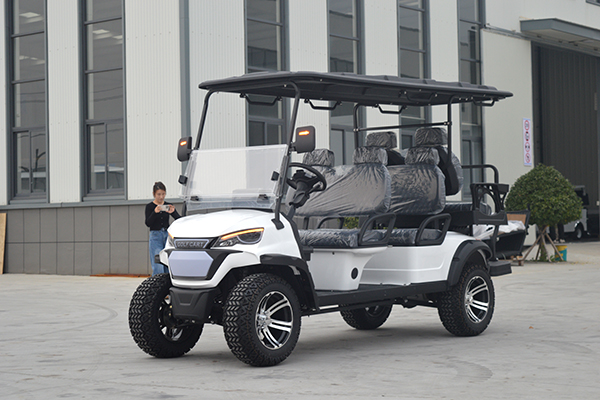

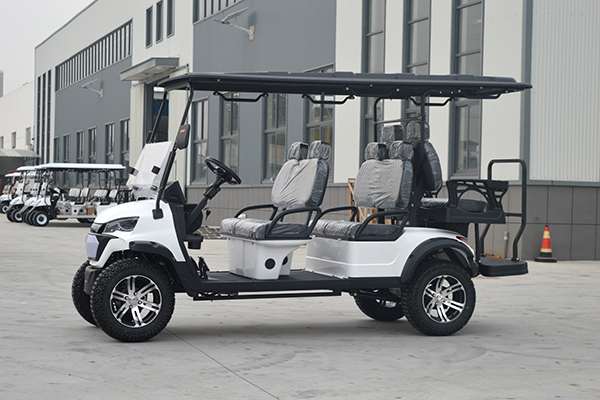

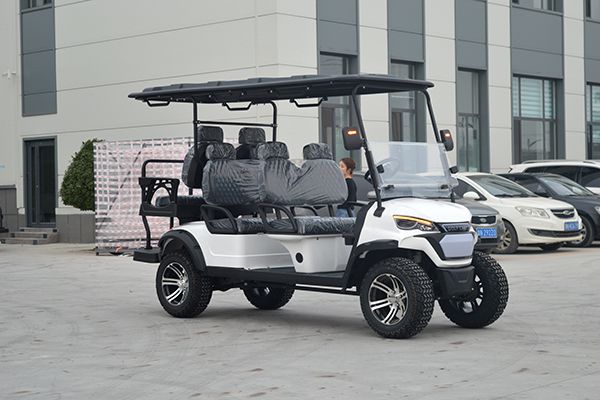

Electric golf cart off-road

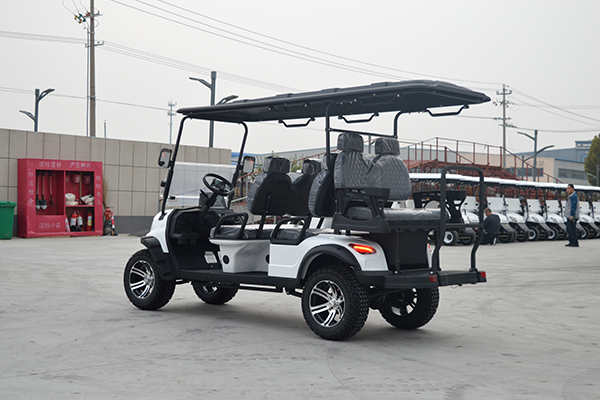

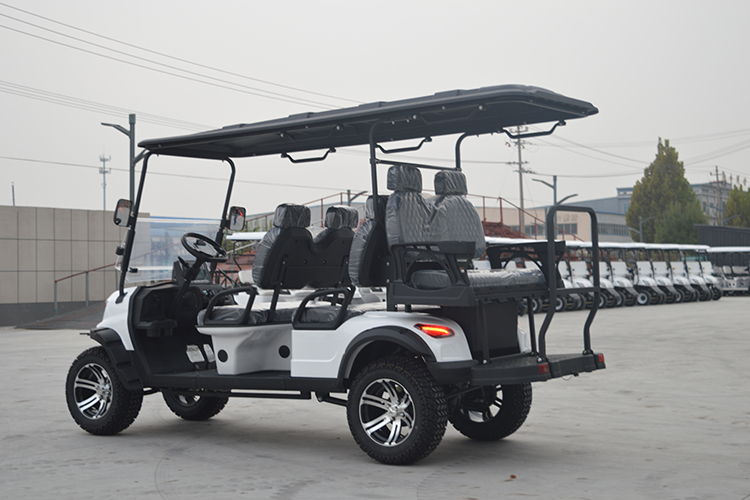

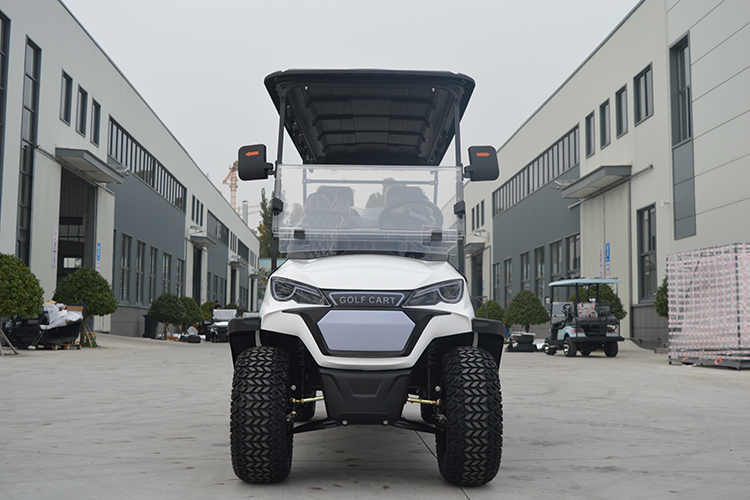

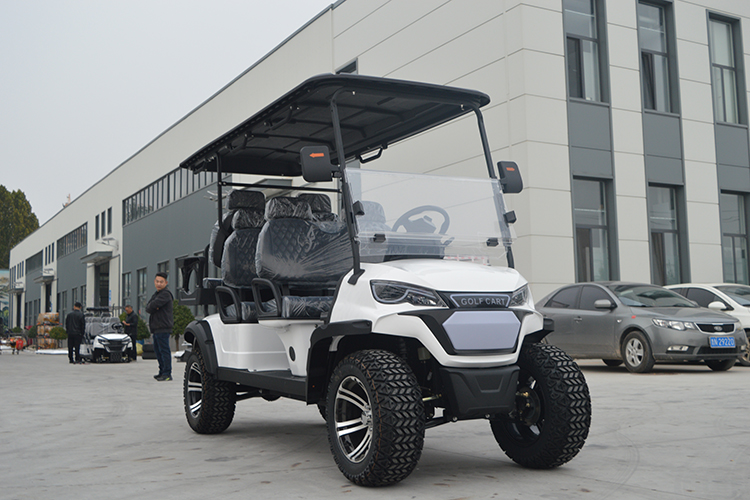

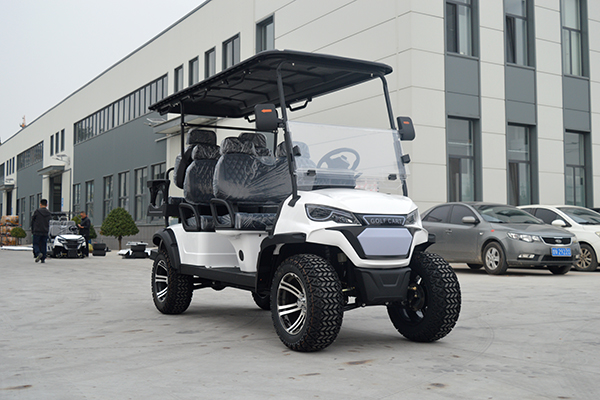

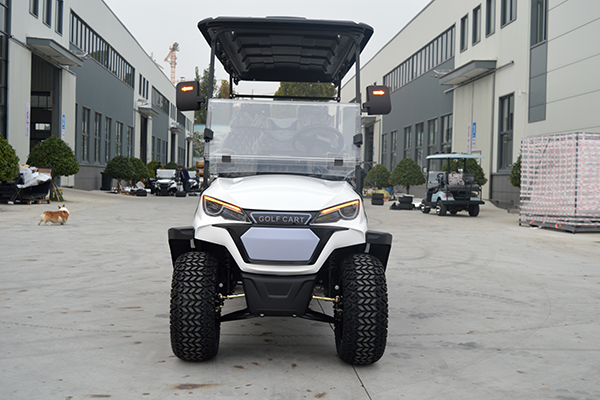

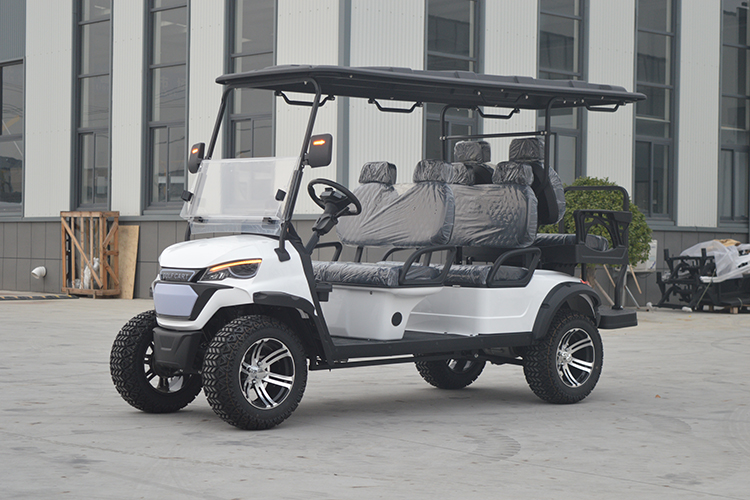

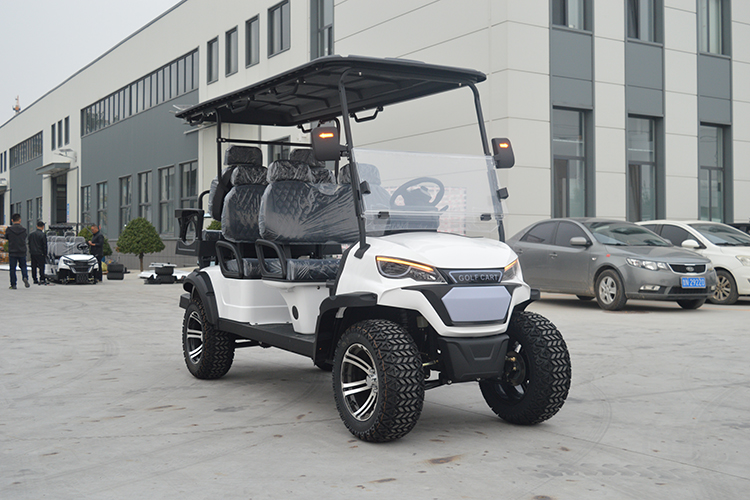

| UCC-DH-12 Off-Road Golf Cart (2+1 Layout, 6-Seater) Specification Sheet | |
| 1. Electrical System | |
| Item | Parameter |
| Electronic Control | 72V Full Intelligent Electronic Control System |
| Battery | 150AH lithium battery (battery capacity upgrade optional) |
| Motor | 4KW / 5KW AC Motor |
| Charger | Intelligent On-Board Charger |
| Charging Time | 6–8 hours (at 80% discharge rate) |
| Charging Input Voltage | 220V / 110V |
| 2. Technical Parameters | |
| Item | Parameter |
| Maximum Speed | 25km/h |
| Braking Distance | ≤6m |
| Maximum Climbing Gradient | 15% |
| Minimum Turning Radius | 5.0m |
| Ground Clearance | 400mm |
| Overall Dimension (L×W×H, mm) | 3550×1250×1900 |
| Cruising Range | Depends on battery configuration |
| Wheelbase | 2330mm |
| Rated Passenger Capacity | 6 persons |
| Front / Rear Track Width | 990mm / 1000mm |
| Curb Weight | 600kg |
| 3. Body System | |
| Item | Configuration Details |
| Seats | Bench seats with leather upholstery and high-resilience PU foam; customized seat style and color available |
| Car Body | Steel frame + injection molded shell + ABS engineering plastic molded parts |
| Instrument Panel | Display meter (with voltage display function) |
| Rearview Mirror | Manual exterior rearview mirror |
| Lights & Signals | LED combined headlights, turn signals, combined rear taillights, brake lights, electric horn |
| Switches | Ignition switch, light switch, forward/reverse gear switch |
| Frame | All-steel structural frame |
| Steering Wheel | Polyurethane foam steering wheel |
| 4. Chassis System | |
| Item | Configuration Details |
| Power Transmission | Rear-wheel drive, Continuously Variable Transmission (CVT) |
| Steering System | Rack-and-pinion steering gear |
| Front Axle & Suspension | Semi-floating front axle |
| Rear Axle & Suspension | Integral rear axle + high-strength leaf springs + cylindrical hydraulic shock absorbers |
| Braking System | Four-wheel hydraulic drum brakes, dual-circuit hydraulic braking, parking brake device |
| Wheels & Tires | 12-inch vacuum radial tires, aluminum alloy wheels |
